Irrigation Zone Addition and Expansion

Add a valve and zone, or extend one, when new plants or a converted lawn outgrow the system.

New plants need their own clock

Yards change faster than irrigation systems. A row of trees along the back wall, a converted lawn or a new bed after a remodel often gets tacked onto the nearest zone, and that is where trouble starts. The Arizona Municipal Water Users Association's watering schedules start new plants at every one to two days in summer and stretch toward weekly over about eight weeks, and put establishment at about a year for shrubs and three for trees.

Established desert shrubs need far less. The City of Peoria notes that desert-adapted plants use less than half the water of high-water-use plants and that grouping plants by need avoids harmful overwatering. Put a new planting on a zone of mature shrubs and one group gets the wrong water. Peoria also suggests planting in spring and fall, when watering needs are lower, so those are the seasons when a zone addition is most often needed and when it pays to plan the valve before the plants go in.

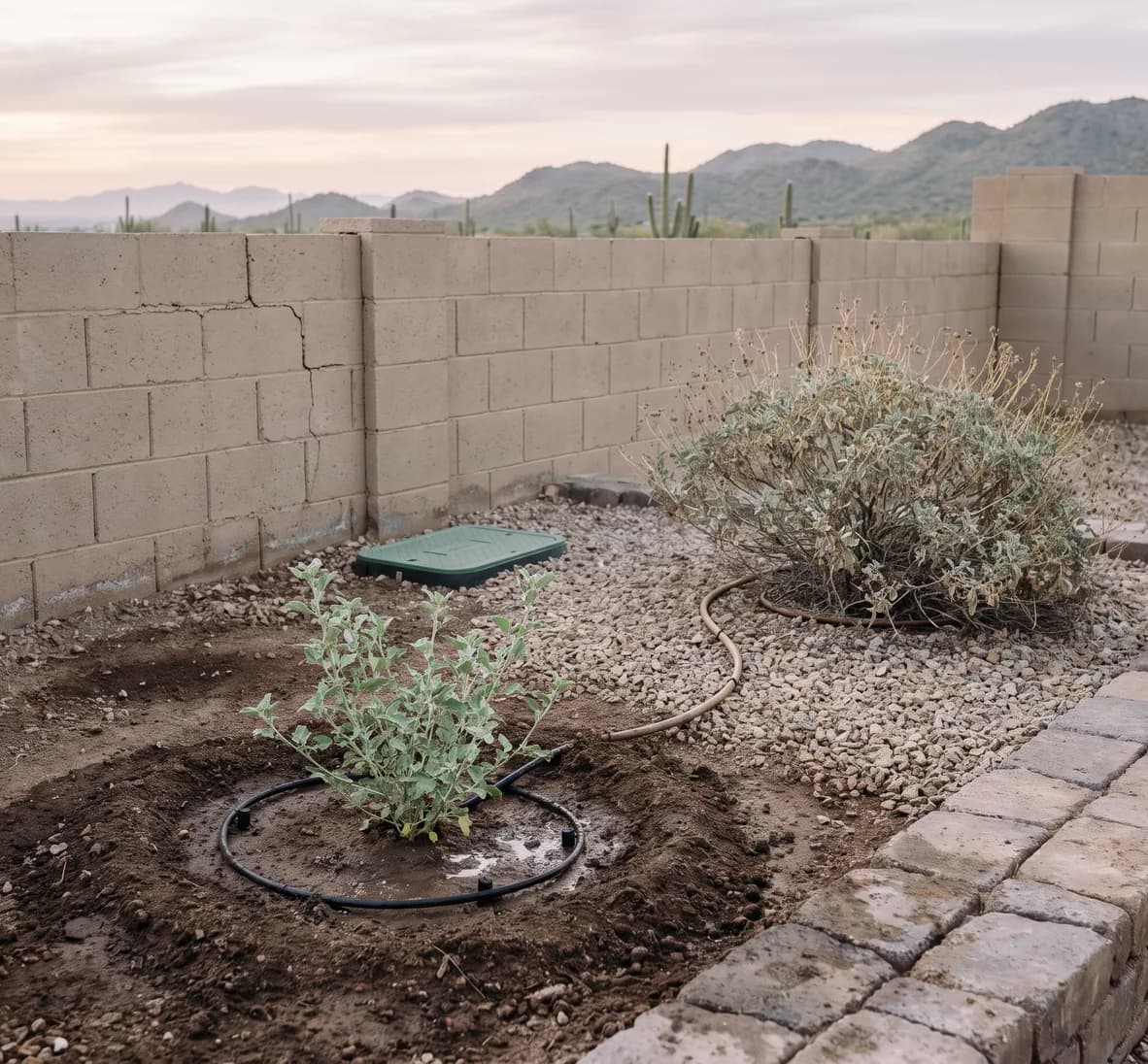

Newly planted shrub in a damp basin on its own emitters beside a mature desert shrub in dry gravel on an older line

Adding capacity without starving the rest

Adding a zone means a new valve at the manifold, a new station on the controller and new lateral or drip line to the planting. The supply has to support it. Each zone should run at good pressure on its own, and in Peoria that means pressure inside the overnight window, since the city's water FAQ says system pressure can drop from the usual 50 to 80 psi to about 40 at weekday peaks. Extending an existing zone with extra heads or emitters can push it past what the supply delivers, and then every outlet on it weakens.

A controller with a spare station keeps the job simple; a full one may need an expansion module or a replacement. Converted lawns often bring drip zones under mulch, and if the conversion is for the city's xeriscape rebate, its plant-list and mulch rules apply. Before trenching to the new bed, buried utilities are located through Arizona 811. Larger redesigns belong under irrigation system installation, and drip layout under drip irrigation.

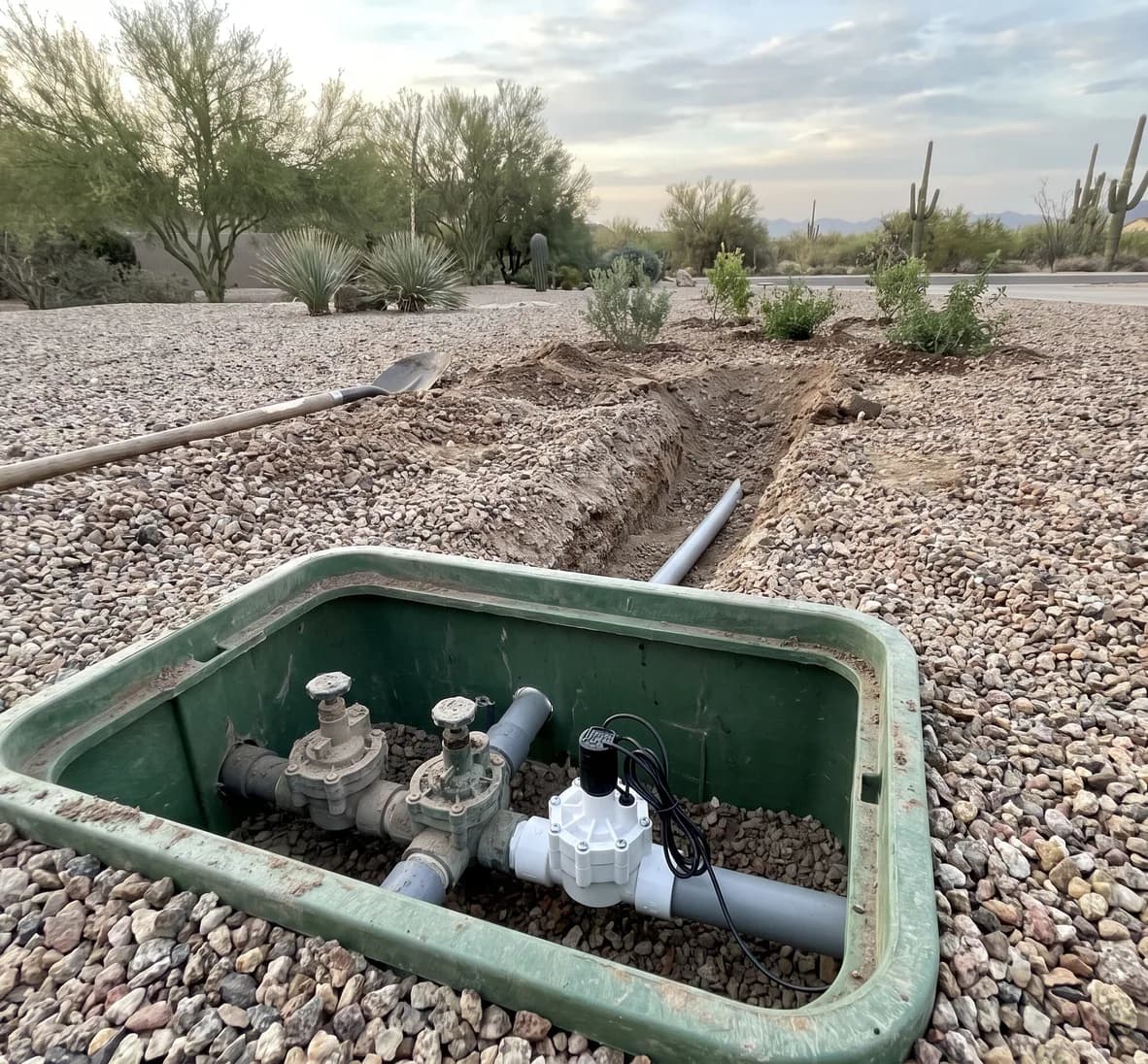

Existing valves with a new third valve joined onto the manifold in an open box, and a fresh trench leading to a new bed

Irrigation Zone Addition and Expansion in these areas

This service is offered for homes inside Peoria, Arizona. Open the Peoria page for local rules, water provider notes and city programs.

11areas covered

Questions about Irrigation Zone Addition and Expansion

When the new planting needs a different schedule from the zone nearby, or when adding heads or emitters would push the zone past what the supply can deliver. Overloaded zones run weak at every head. A new valve lets the new plants be watered, and later cut back, on their own schedule.
